UHF Lite Expansion for Raspberry Pi Pico

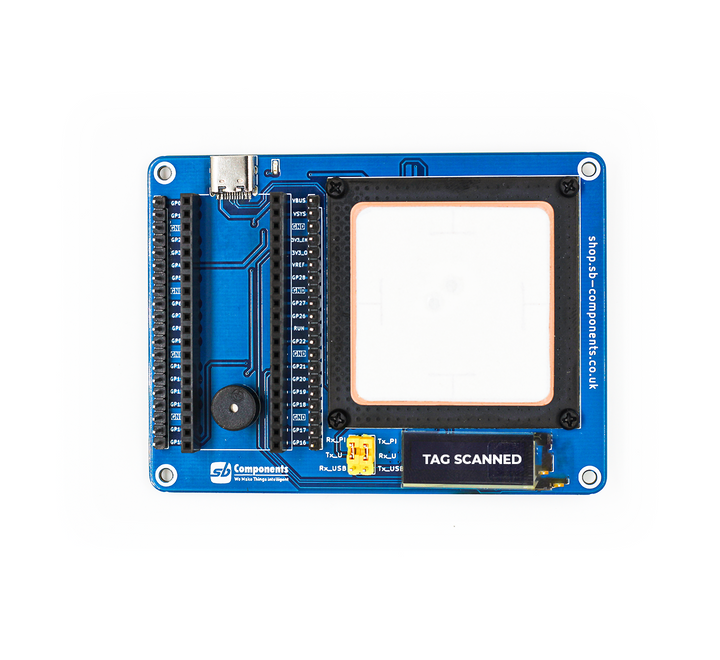

Introducing the UHF Lite Expansion for Raspberry Pi Pico - the ultimate solution for advanced tracking and identification projects! Equipped with a UHF RFID module, and an onboard 0.91" OLED display this expansion board offers a stable reading distance of up to 1 meter and can identify over 50 tags simultaneously.

With an onboard CH340, you can directly communicate with your PC via USB, and the onboard buzzer provides audio feedback on successful scans. Compatible with both Raspberry Pi Pico and Pico W, this expansion board is easy to install and use.

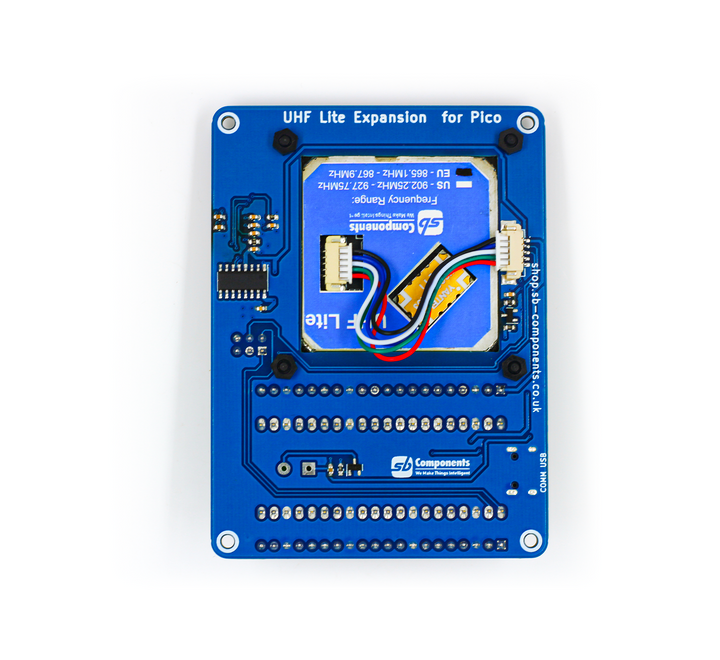

What sets this expansion board apart is its integrated antenna. With outstanding sensitivity and stability, it can work without exothermic reaction, even in normal indoor temperatures. Plus, its wide temperature design and drift coefficient ensure that it operates reliably 24/7, unaffected by electromagnetic environments.

Upgrade your projects with the UHF Lite Expansion for Raspberry Pi Pico and experience exceptional stability and performance!

Features:

• UHF RFID module
• Onboard CH240 for direct communication with PC via USB
• Onboard buzzer for audio feedback on successful scans

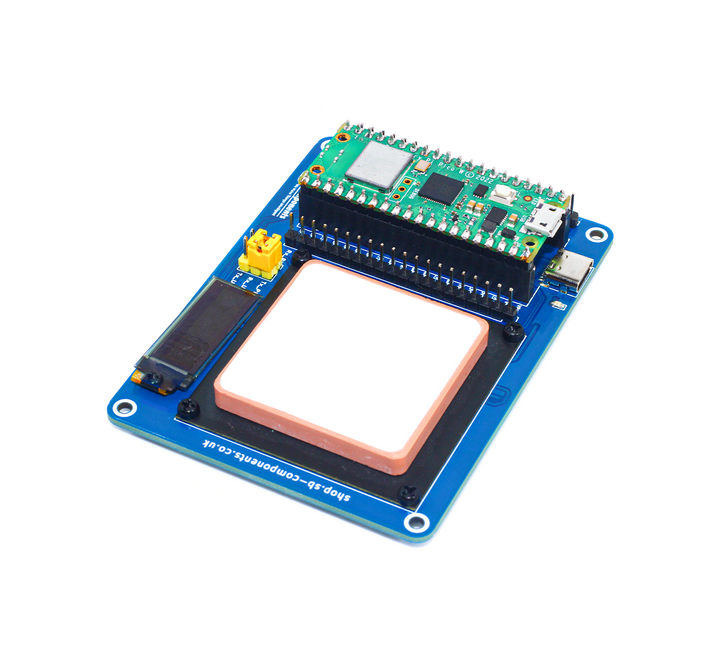

• Compatible with both Raspberry Pi Pico and Pico W
• Easy to install and use

Specifications

• UHF RFID module
• Input voltage: 5V DC
• Communication interface: UART
• Operating frequency: 860-960MHz
• UHF Module Type: Read Only

• Supports ISO18000-6C/EPC C1G2 protocol

• Onboard Integrated Antenna

Resources:

Software GitHub:  Getting Started Guide
Hardware GitHub: Hardware Design files like Schematic, Step and 3D

• 1 x UHF RFID Expansion
• 5 x UHF RFID TAG (Adhesive)
