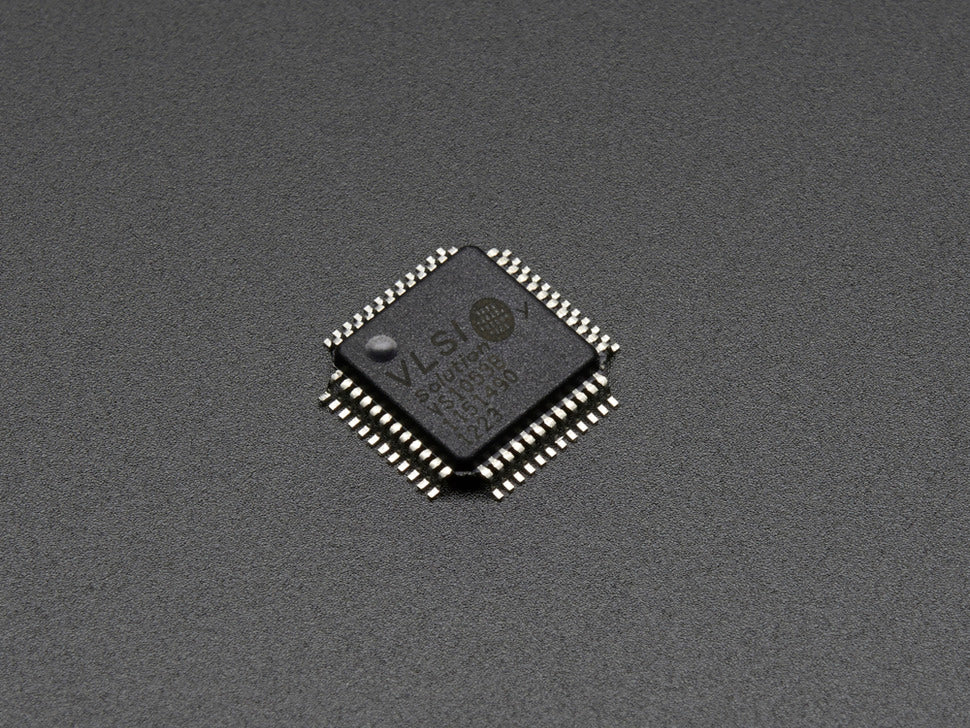

VS1053B MP3/WAV/OGG/MIDI Player & Recorder (CODEC) Chip

The VS1053 is a versatile multi-format audio codec chip that can decode digital audio files such as MP3, FLAC, AAC, OGG, and WAV as well as encode audio into digital formats like WAV and OGG. This chip significantly reduces the processing load on small microcontrollers by handling complex audio decoding operations.

This chip requires some support circuitry; for beginners, the VS1053 breakout board featuring a microSD socket and level shifting is recommended. For advanced users and custom projects, this raw chip offers more customization.

Additional features include a built-in MIDI synthesizer with 50 instruments, 8 GPIO pins, Bass & Treble adjustment, and an I2S digital output. Example code for Arduino and schematics are available on the Adafruit tutorial page. For detailed information, refer to the VLSI webpage.

• Multi-format decoding: MP3, WAV, OGG, FLAC, AAC, WMA, MIDI, and more
• Audio encoding in WAV and OGG formats
• Built-in MIDI synthesizer with 50 instruments
• 8 general-purpose input/output (GPIO) pins
• Bass and treble controls for audio tuning
• I2S digital output interface
• High-quality stereo DAC with no phase error

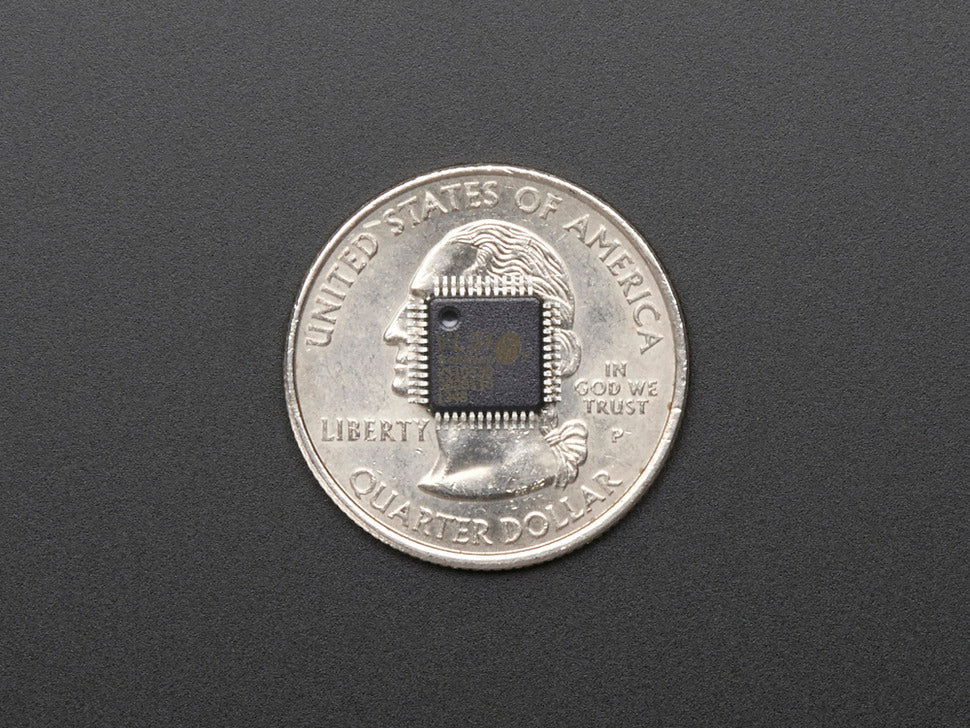

• Small form factor: 9mm x 9mm (7mm x 7mm body), TQFP-48 package
