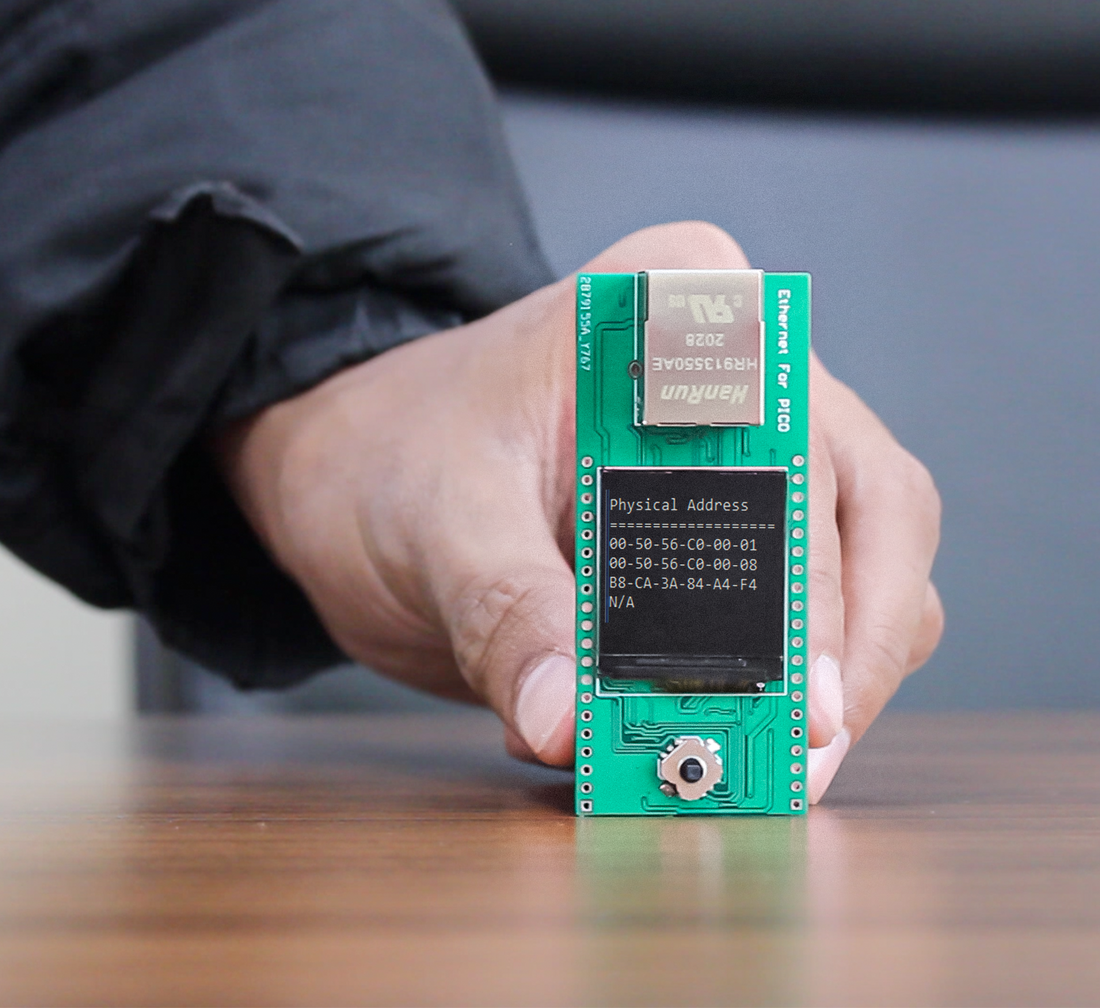

NetPi - The Ultimate Ethernet Solution for Raspberry Pi Pico

Are you tired of limited internet connectivity options for your Raspberry Pi Pico? Do you want to connect your device to the world with ease?

Introducing NetPi - The Ethernet HAT for Raspberry Pi Pico.

NetPi is the perfect solution for your Raspberry Pi Pico's connectivity needs. It's an Ethernet HAT that enables your Pico to connect to the internet with ease. With support for various internet protocols such as TCP, UDP, WOL over UDP, ICMP, IPv4, and more, NetPi can be used to create IoT devices, robots, home automation systems, and industrial control systems.

NetPi - Ethernet Module for Raspberry Pi Pico

It has four independent SOCKETs that can be used simultaneously, and it also supports SOCKET-less commands like ARP-Request and PING-Request. The Ethernet HAT is equipped with 10Base-T/100Base-TX Ethernet PHY and auto-negotiation for full and half duplex with 10 and 100-based connections. With a 3.3V operation and 5V I/O signal tolerance, NetPi is ideal for a variety of applications.

NetPi Enables your Raspberry Pi Pico to connect to the internet with ease

- Plug & Play

- Hardwired TCP/IP CHIP

- 1.3” LCD Display

- Pico IO’s Access

- 5-way Joystick

- Support Pico/Pico W

- On-board RJ45

The HAT also features a 1.3" TFT LCD with 240 x 240 pixels RGB and a 5-way joystick for a great user experience. NetPi is easy to install and use, and it's compatible with the Raspberry Pi Pico header. Upgrade your Raspberry Pi Pico's connectivity today with NetPi, the ultimate Ethernet solution.

With a female pin header for direct attachment to Raspberry Pi Pico and breakout key pins for use with other host boards, NetPi is the ultimate solution for all your Ethernet needs. Operating at a temperature range of 40°C to 85°C and a current of 140mA, NetPi is built to withstand challenging environments.

Don't let limited connectivity hold you back any longer. Get NetPi today and take your Raspberry Pi Pico to the next level of connectivity.

NetPi Features

- Support Hardwired Internet protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE

- Four independent SOCKETs for simultaneous connections

- Perform SOCKET-less commands: ARP-Request, PING-Request

- Ethernet power down mode and Wake on LAN over UDP for energy-saving

- 10Base-T/100Base-TX Ethernet PHY with auto-negotiation for full and half duplex with 10 and 100-based connections

- 3V operation with 5V I/O signal tolerance

- Network indicator LEDs for full/half duplex, link, 10/100 speed, and active status

- Female pin header for direct attachment to Raspberry Pi Pico and breakout key pins for use with other host boards

- Operating temperature range of 40°C to 85°C

- Operating current of 140mA

- 1.3" TFT LCD with 240 x 240 pixels RGB and 5-way joystick for user experience

- Dimension: 74.54 x 21.00 (mm)

- Storage condition: -55°C to 125°C

- Built-in RJ45

Upgrade your Raspberry Pi Pico's internet connectivity with NetPi, the ultimate Ethernet solution. Get it today!

Get NetPi today and take your Raspberry Pi Pico to the next level of connectivity for all your IoT, robotics, home automation, and industrial control needs.
