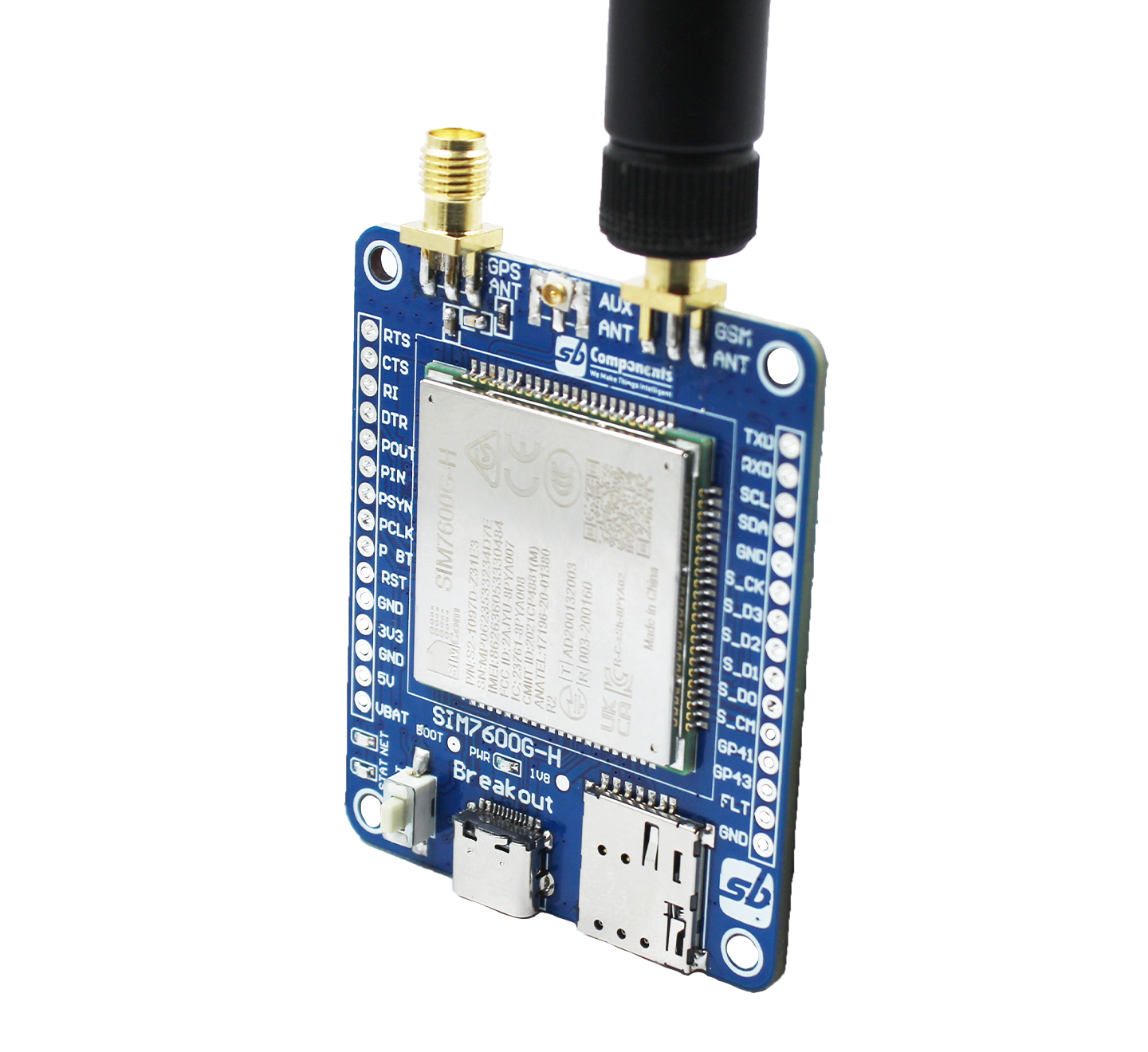

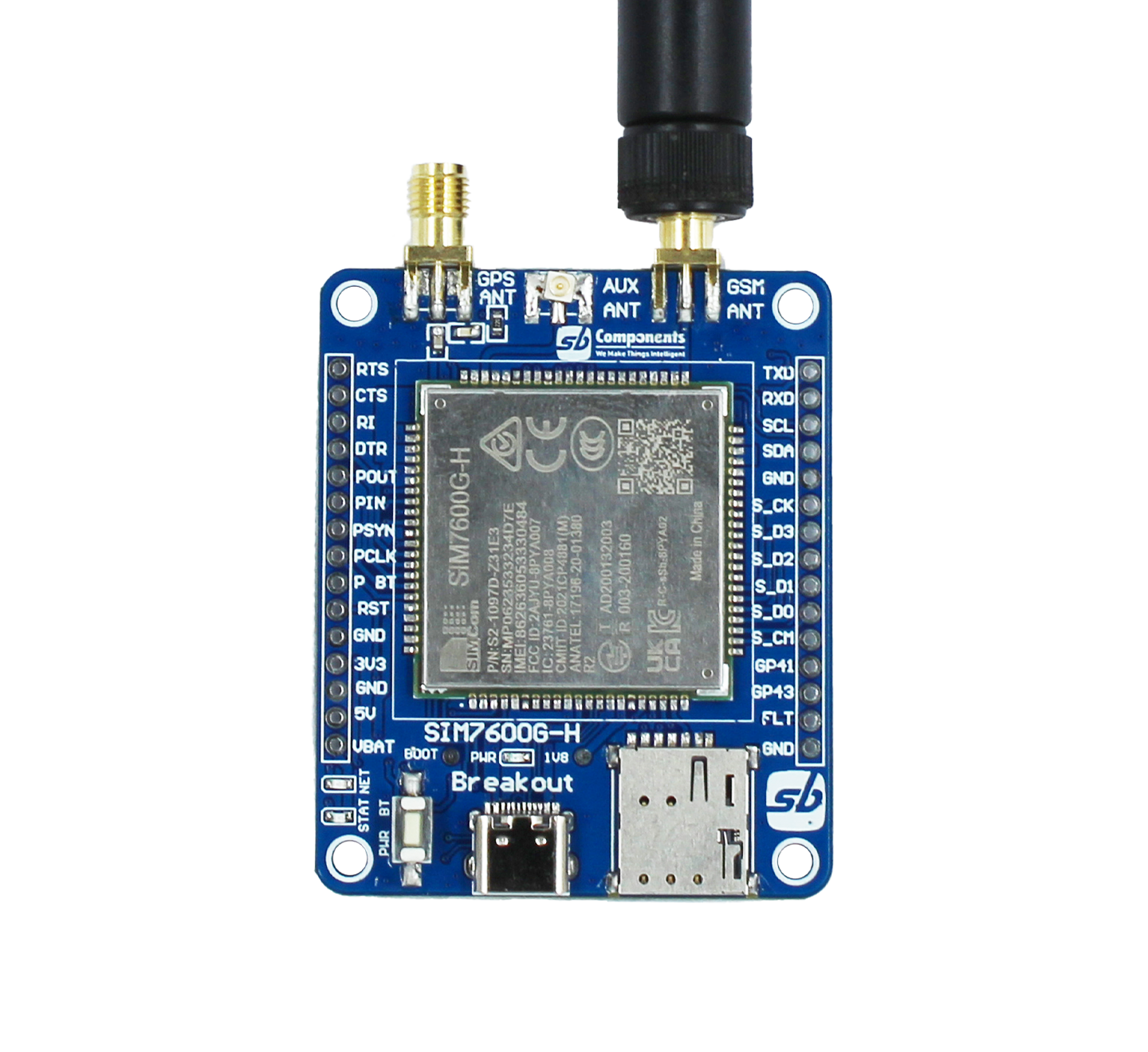

Introducing the SIMCOM 4G Module Breakout, a comprehensive solution designed to elevate your connectivity and positioning projects to new heights. Engineered with precision and versatility in mind, this breakout board seamlessly integrates advanced features and compatibility, ensuring seamless communication and accurate location data.

SIMCOM 4G module Breakout

Features:

  • Multi-Constellation GNSS Receiver: Harness the power of multiple satellite systems including GPS, GLONASS, BDS, and QZSS, ensuring robust and reliable positioning capabilities.
  • Type C Interface: Experience effortless programming and power delivery through the modern and universal Type C interface, streamlining your development process.
  • Status LED: Stay informed at a glance with dedicated status LEDs, providing real-time feedback on board power status and network activity, ensuring you're always connected when it matters most.
  • Micro SIM Support Slot: Enjoy hassle-free integration of your micro SIM card, enabling seamless 4G connectivity in a compact and efficient form factor.
  • AT Command Support: Test and fine-tune functionality with ease using comprehensive AT command support, empowering developers to optimize performance and explore advanced features.
  • Functional GPIOs Breakout: Interact with a wide range of platforms including Arduino, ESP32, Raspberry Pi, and more, thanks to the breakout GPIO pins, enabling seamless integration into diverse projects and applications.

Specifications:

Product SIM7600G-H R2
Form Factor LCC+LGA, 119PIN
Dimensions(mm) 30.0*30.0*2.9
Frequency Bands B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/ B28/B66
  B34/B38/B39/ B40/B41
  B1/B2/B4/B5/ B6/B8/B19
  850/900/1800/ 1900MHz
GNSS o
Temperature GNSS -40℃ ~ +85℃ Optional
Supply Voltage(V) 3.4~ 4.2
Power Consumption(mA) 2.3
  3.3
  2.8
LTE(Mbps) 150(DL)/50(UL)
HSPA+(Mbps) 42(DL)/5.76(UL)
WCDMA(Kbps) 384(DL)/384(UL)
GPRS/EDGE(Kbps) 236.8(DL)/236.8(UL)
Software Features
Protocol TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS
Android RIL Android 5.0/6.0/ 7.0/8.0/9.0
USB Driver Microsoft Windows  7/8/10 Linux/Android
MBIM Win8/Win10
NDIS Linux/Windows  7/8/10
Firmware Upgrade USB/FOTA
SIM Card 1.8V/3.0V
Regulatory CE-RED/FCC/IC/RCM/CCC/ Telec/Jate/Anatel/NCC/IMDA*/ ICASA*/PTCRB/GCF/RoHS/ REACH
Carrier AT&T*/Verizon*/T-mobile*/US Celluar*/Telstra*


Pinout:

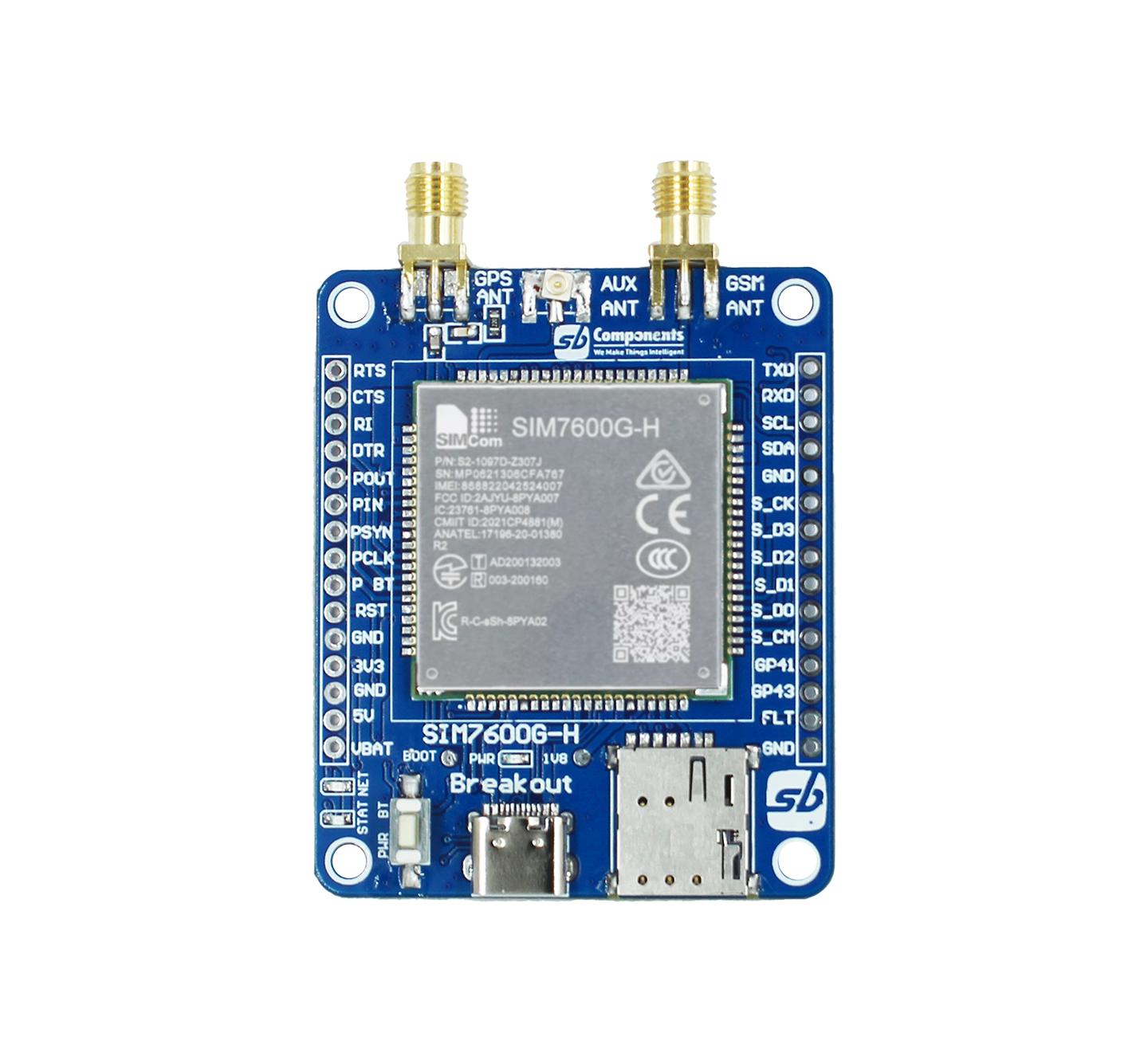

SIMCOM 4G module Breakout Pinouts
  1. Auxiliary Antenna SMA connector
  2. Main Antenna SMA connector
  3. SIM7600G-H 4G SIMcom Module
  4. Nano-SIM slot
  5. Type C interface
  6. Module Power BTN
  7. NET_STATUS LED
  8. Network LED
  9. Power LED
  10. GPS Antenna uFL connector
  11. GPIOs and Power pins Breakout

Whether you're embarking on IoT ventures, asset-tracking endeavours, or pioneering innovative solutions, the SIMCOM 4G Module Breakout stands ready to empower your projects with unparalleled performance and adaptability. Unlock the full potential of your ideas with reliable connectivity and precise positioning, all within the compact confines of this versatile breakout board.

Resources:

Software GitHub: Getting Started Guide for Breakout
Hardware GitHub: Hardware Design files like Schematic, Step and 3D

Kit Content:
