PowerBoost 500 Charger - Rechargeable 5V Lipo USB Boost @ 500mA+

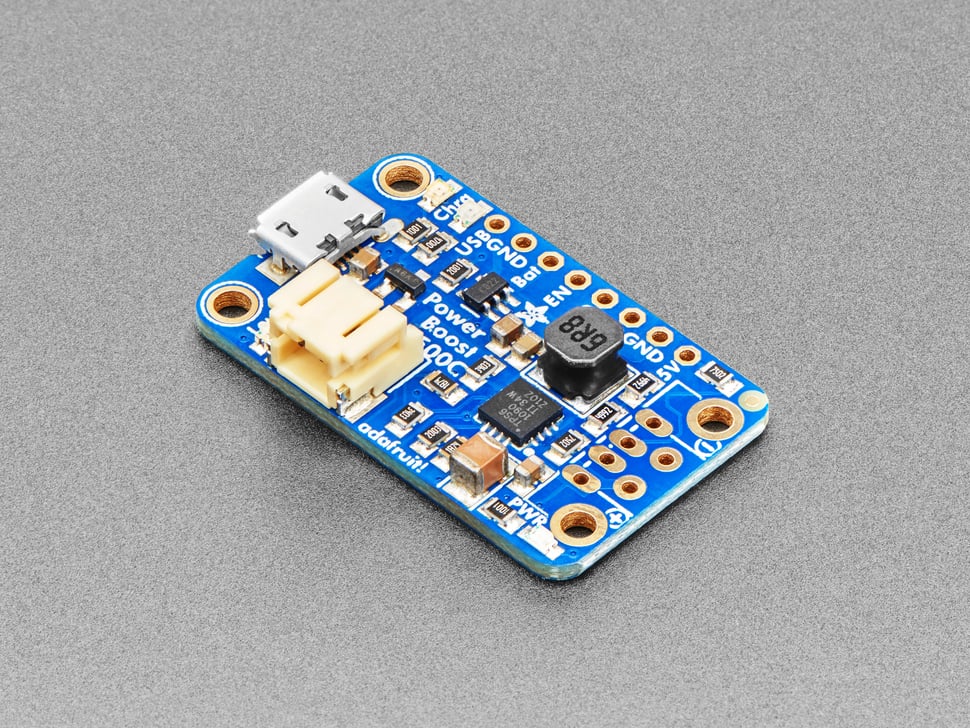

The PowerBoost 500C is an ideal power supply for your portable project, offering a built-in battery charger to keep your project running while the battery recharges. This compact DC/DC boost converter module takes power from any 3.7V LiIon/LiPoly battery and converts it to a stable 5.2V DC, perfect for running 5V-powered devices like Arduino, Raspberry Pi, and BeagleBone.

Key Features:

• Converts 3.7V LiIon/LiPoly battery to 5.2V DC, with added headroom for long cables or high current draw.
• Supports devices up to 500mA+ with a 2A internal switch and 700kHz high-frequency operation.
• Efficient, synchronous operation with 90%+ efficiency in most cases.
• Low battery detection with a red LED that activates when voltage dips below 3.2V.
• Features onboard 500mA charge-rate 'iOS' data resistors for iPhone or iPod charging (not recommended for large iPads).
• 500mA max charging rate for 3.7V/4.2V LiIon/LiPoly batteries with microUSB jack and LED indicators.
• Charge and boost simultaneously without interruption—perfect for "UPS" (un-interruptable power supply) use with low-current devices.
• Includes full breakout for battery in, control pins, and power out.

The PowerBoost 500C also features a MicroLipo charger, powered via microUSB, and comes fully assembled and tested. For easy integration, the module includes a loose USB A jack for soldering, or you can use a 3.5mm 2-pin block for more compact setups.

Please Note:

• Works only with a LiPoly/LiIon battery (battery not included).
• Ideal for powering robots, Arduino projects, Raspberry Pi, BeagleBone, and other low-current devices.
• Requires a battery with a capacity of at least 500mAh.

Each order includes one fully assembled PowerBoost 500C + USB jack. Additional components such as the battery, switch, or cables are sold separately. Be sure to check out the detailed tutorial for setup and usage!

Technical Details:

• Dimensions: 22mm x 37mm x 2mm (0.9" x 1.5" x 0.08")
• Height with JST: 7mm (0.3")
• Weight: 4g
