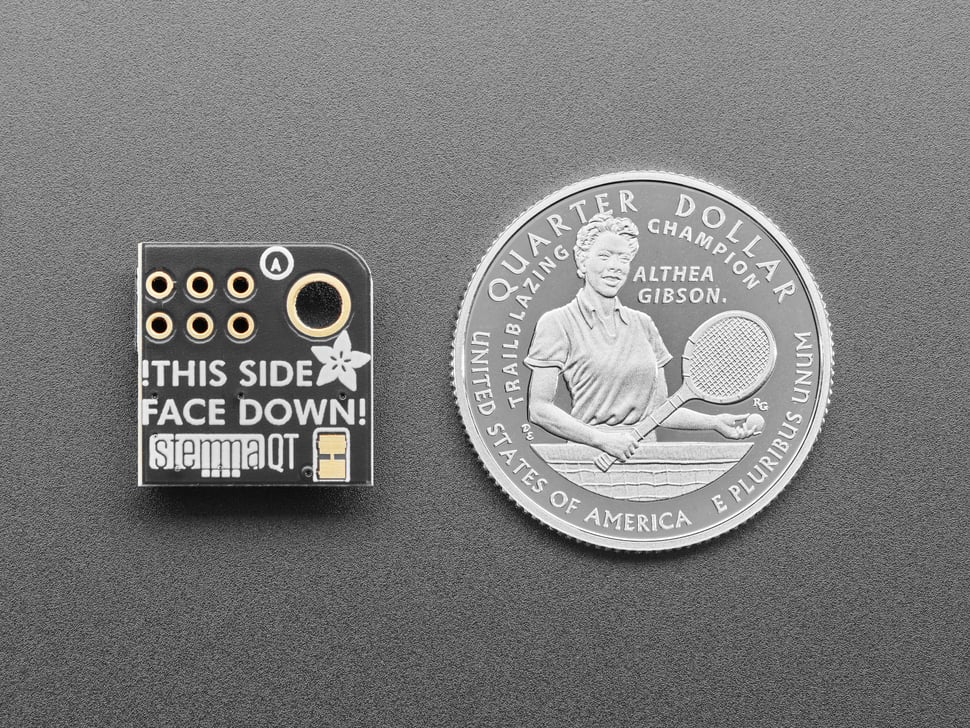

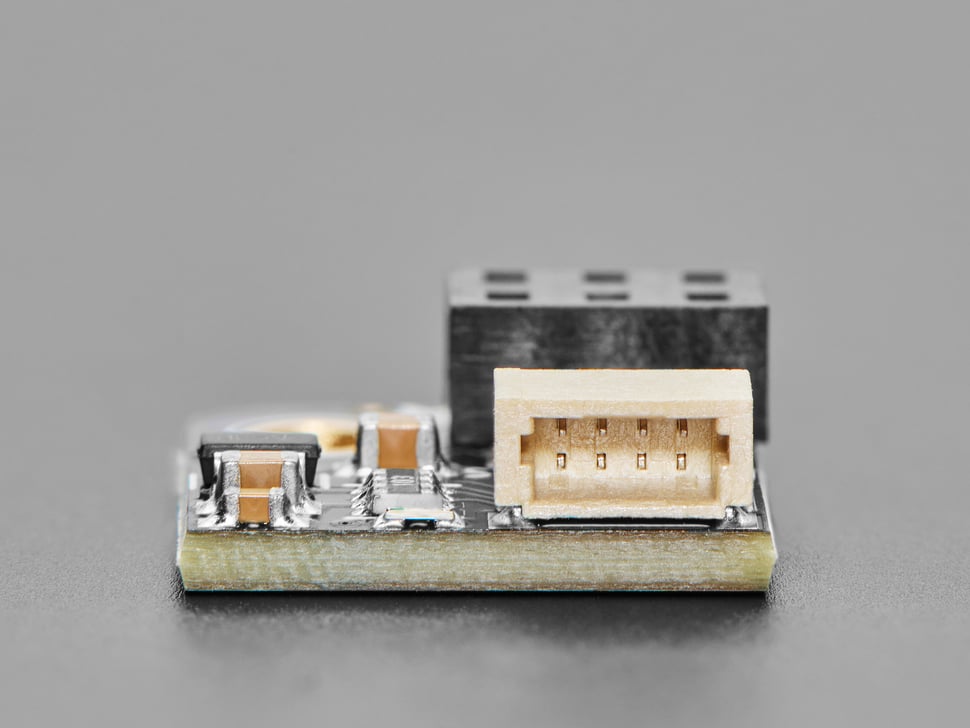

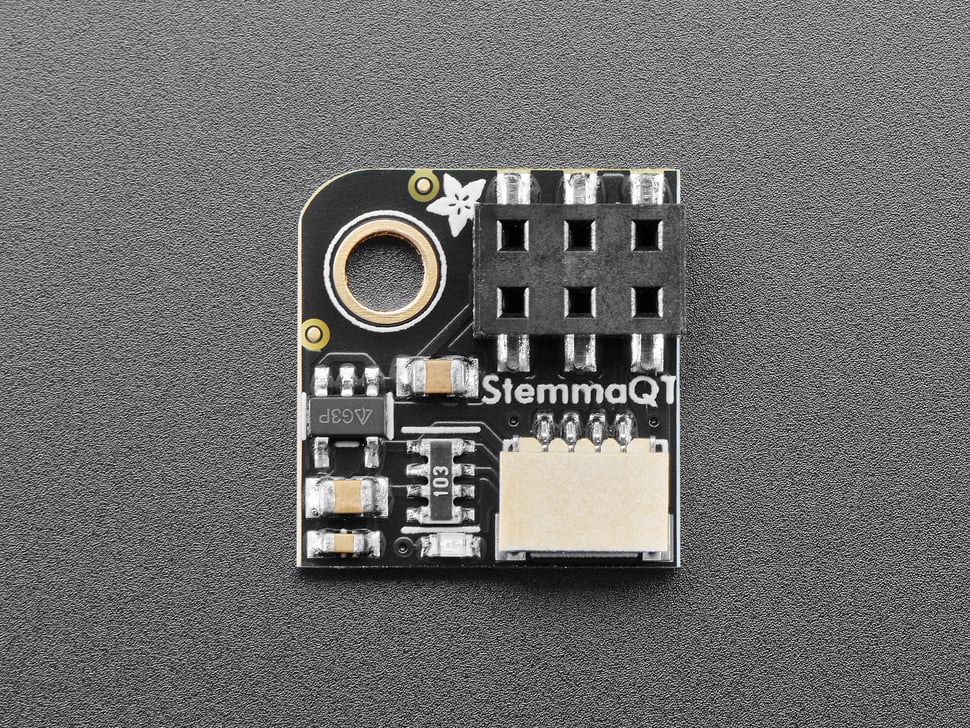

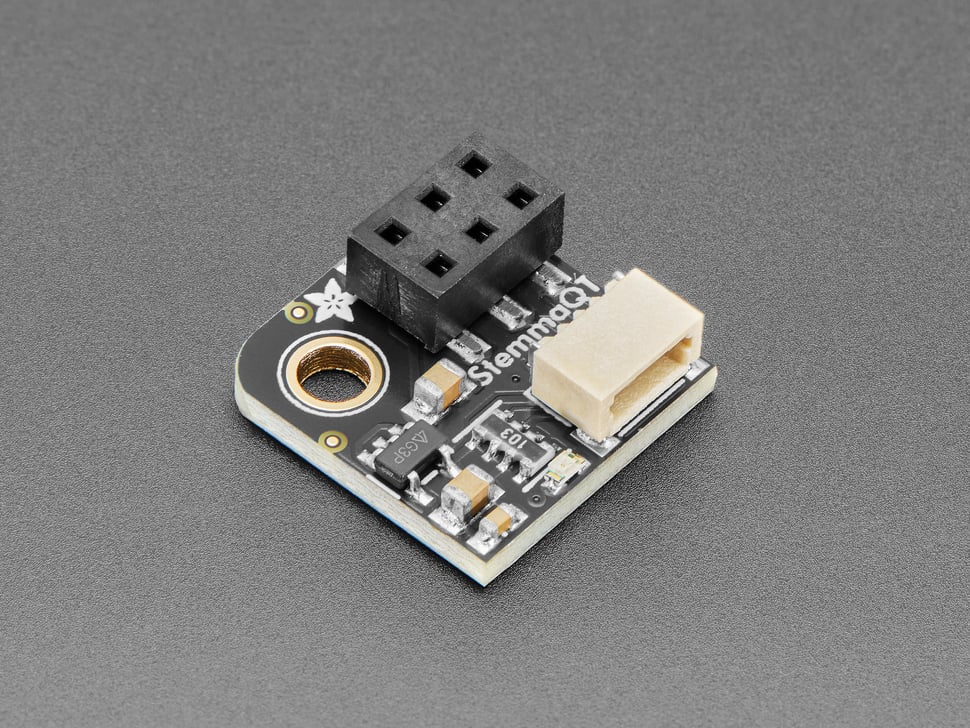

Adafruit Pi Stemma QT Breakout for Raspberry Pi and Compatibles

The Adafruit Pi Stemma QT Breakout is a small, easily removable breakout that adds a 4-pin JST SH connector (Stemma QT or Qwiic) to your Raspberry Pi. Its 2x3 socket design allows secure plug-in to the Pi's I2C bus without soldering.

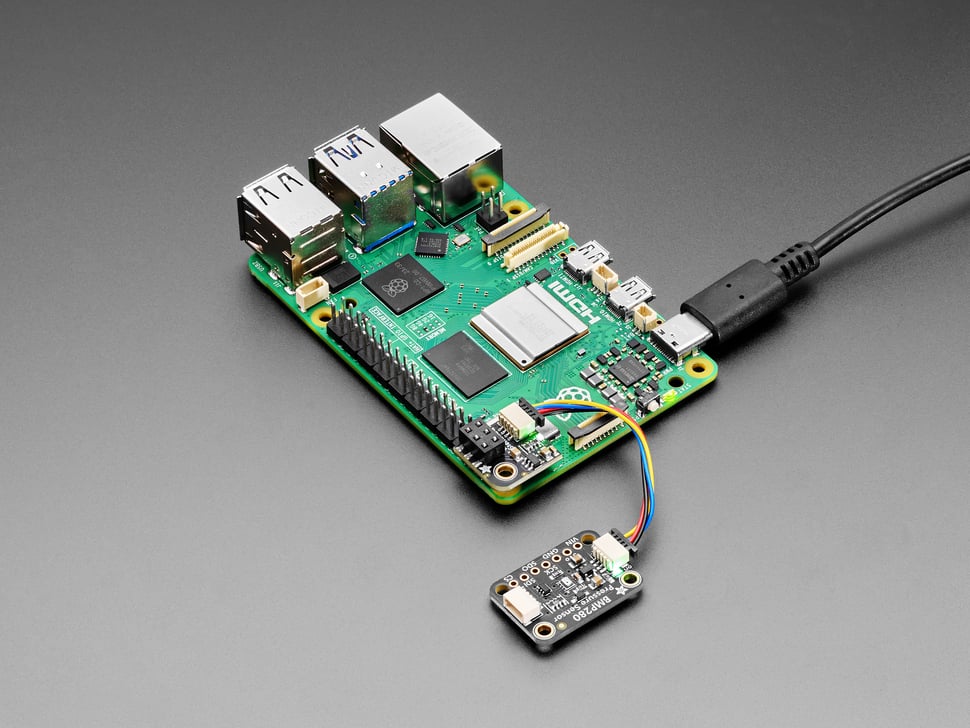

This breakout is perfect for adding QT connectors for quick I2C sensor and device integration without header-fiddling. It features a 2x3 header on top connecting to power and I2C pins aligned with the edge of the 2x20 connector on your Pi or compatible device.

A 3.3V regulator ensures compatibility with all Qwiic or Stemma QT devices without risk of brownout dips. An integrated green LED indicates proper power. Two 10K pullup resistors are included for Pi compatible boards lacking them.

Compatible with any Linux single board computer or microcontroller having a 2x20 Pi-compatible pinout. Use with Blinka, Adafruit's Python interface library, to leverage CircuitPython libraries on SBCs.

• 4-pin JST SH connector for I2C bus (SDA, SCL, 3V, Ground)
• 3.3V regulator for stable power supply
• Green power LED indicator
• Included 10K pullup resistors
• No soldering required
• Compatible with Raspberry Pi and many Pi-compatible SBCs

Dimensions: 15.2mm x 15.0mm x 5.5mm

Weight: 1.1g
